The join/inner join command is used to join multiple tables based on a particular column. Tables can also be joined using the same columns. There are four types of join.

• inner join
• right join
• left join
• full outer join

inner join is the default join. so join and inner join are the same. Let's how join works.

We are using the employees table and jobs table for this example.

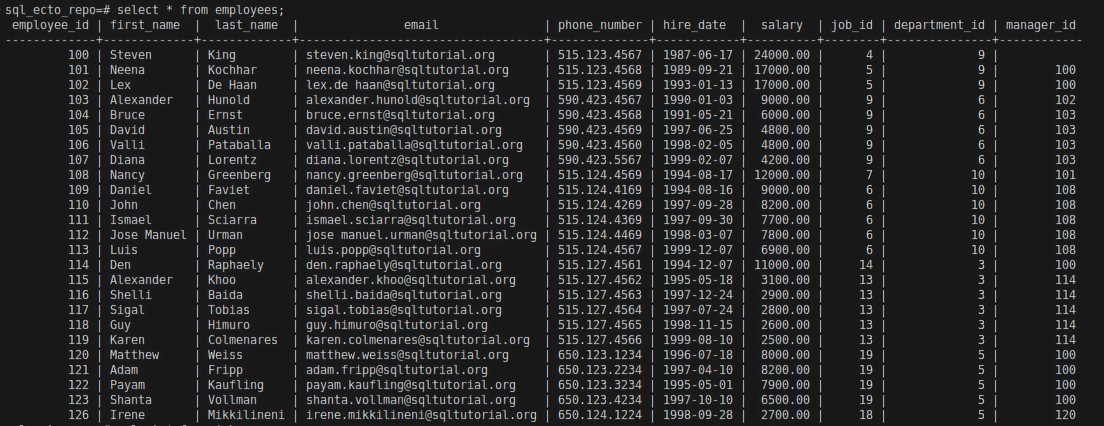

employees table

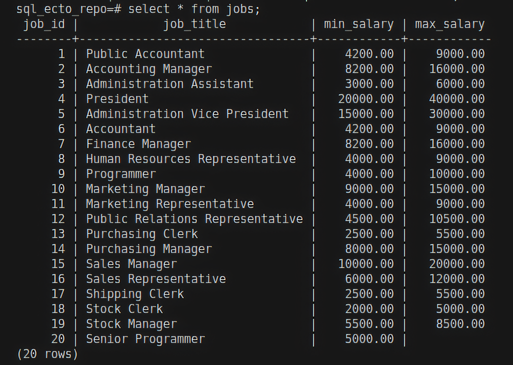

jobs table

The employees and the jobs tables have a common column called job_id. We can join these two tables and create one big table using this job_id column.

For Example:

select * from employees join jobs on employees.job_id = jobs.job_id;

Query Explanation:

• The operands in join/inner join specify which tables are going to be joined. Here, we defined employees and jobs that going to be joined.
• ON is used to specify which columns in the tables have the same values. It indicates how these tables are related to each other. - Here, employees and jobs are related by the column job_id. So we are joining employees and jobs tables that are related to each other by the column job_id.
• We are selecting every column from both tables.

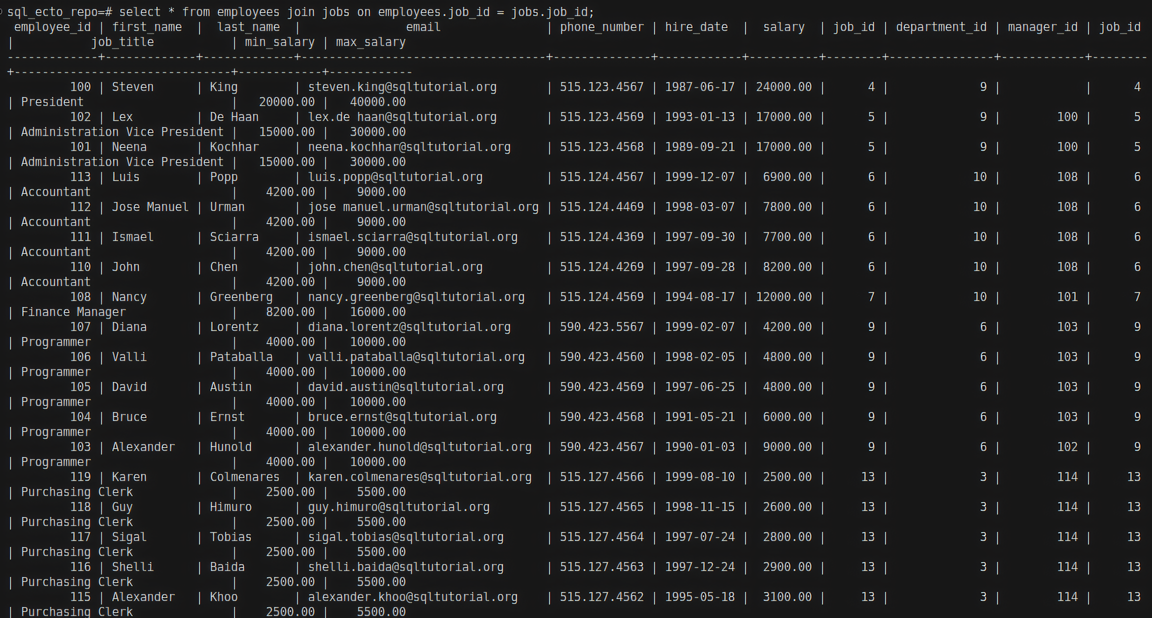

Result:

In the above table, you can see that both employees and jobs are joined together, with all the columns appearing.

Example to select only some columns that need to appear:

select employees.first_name, employees.last_name, employees.phone_number, jobs.min_salary from employees join jobs on employees.job_id = jobs.job_id;

In the above example, we are selecting only first_name from employees, last_name from employees, phone_number from employees, and min_salary from jobs.

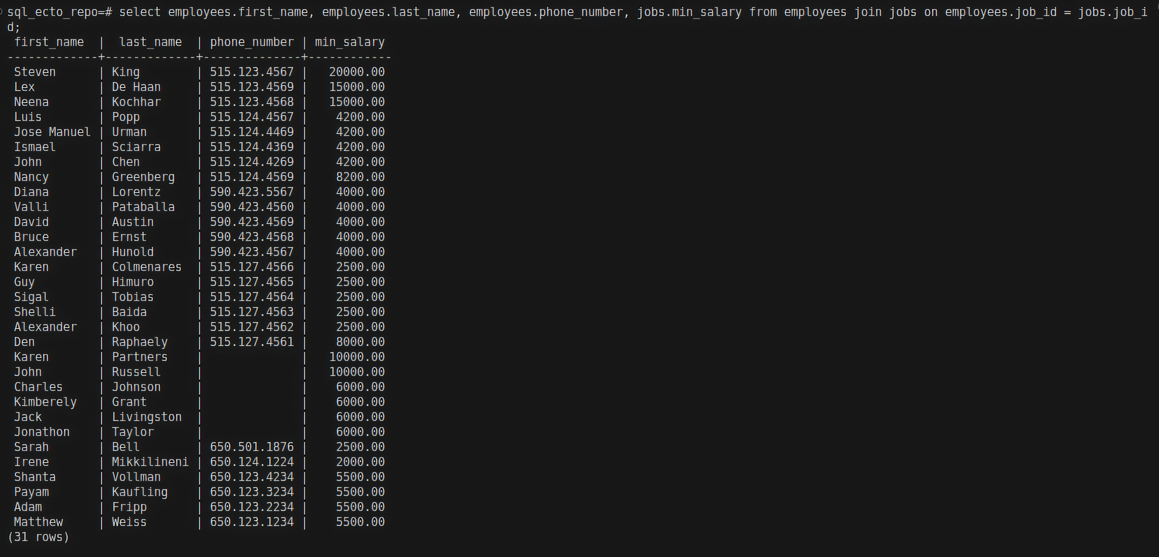

Result:

Ecto query for join

join/5

The join/5 function is used to perform all types of joins: inner, outer, right, and left. This function accepts 4 arguments:

1. A schema
2. The join type -> :inner, :right, :left, :full,...
3. A variable to refer to the schema
4. A variable to refer to the second schema
5. on to refers to the column name that matches both the table

Now let's see :inner join.

Example:

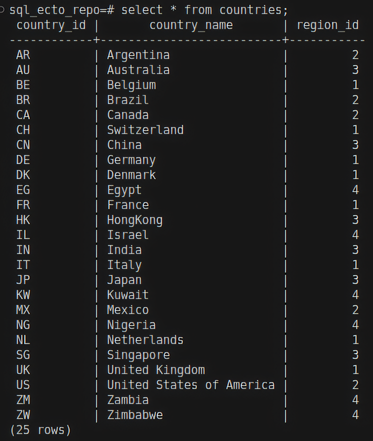

We are using the countries and regionstable for this query. Refer Introduction to know about these tables and the database.

Now let's perform an inner join for these two tables in Ecto.

Expression example

For Example:

 HR.Region
 |> join(:inner, [r], c in HR.Country, on: r.region_id == c.region_id)
 |> select([r, c], [r, c])
 |> HR.Repo.all()

The above query will only return rows whose region_id is the same in both HR.Region and HR.Country. Here, r and c are reference variable for HR.Region and HR.Country. To know about reference variable refer Aliases in Ecto.

Explanation:

join(:inner, [r], c in HR.Country, on: r.region_id == c.region_id)

• :inner is a join type
• [r] is a variable is a reference to HR.Region
• c in HR.Country is another schema with a reference variable
• on: r.region_id == c.region_id is the common field for both schema.

Result:

iex(3)> HR.Region |> join(:inner, [r], c in HR.Country, on: r.region_id == c.region_id) |> select([r, c], [r, c])|>  HR.Repo.all()

[
  [
    %HR.Region{
      __meta__: #Ecto.Schema.Metadata<:loaded, "regions">,
      region_id: 2,
      region_name: "Americas"
    },
    %HR.Country{
      __meta__: #Ecto.Schema.Metadata<:loaded, "countries">,
      country_id: "AR",
      country_name: "Argentina",
      region_id: 2
    }
  ],
  [
    %HR.Region{
      __meta__: #Ecto.Schema.Metadata<:loaded, "regions">,
      region_id: 3,
      region_name: "Asia"
    },
    %HR.Country{
      __meta__: #Ecto.Schema.Metadata<:loaded, "countries">,
      country_id: "AU",
      country_name: "Australia",
      region_id: 3
    }
  ],
  [
    %HR.Region{
      __meta__: #Ecto.Schema.Metadata<:loaded, "regions">,
      region_id: 1,
      region_name: "Europe"
    },
    %HR.Country{
      __meta__: #Ecto.Schema.Metadata<:loaded, "countries">,
      country_id: "BE",
      country_name: "Belgium",
      region_id: 1
    }
  ],
  [
    %HR.Region{
      __meta__: #Ecto.Schema.Metadata<:loaded, "regions">,
      region_id: 2,
      region_name: "Americas"
    },
    %HR.Country{
      __meta__: #Ecto.Schema.Metadata<:loaded, "countries">,
      country_id: "BR",
      country_name: "Brazil",
      region_id: 2
    }
  ],
  [
    %HR.Region{
      __meta__: #Ecto.Schema.Metadata<:loaded, "regions">,
      region_id: 2,
      region_name: "Americas"
    },
    %HR.Country{
      __meta__: #Ecto.Schema.Metadata<:loaded, "countries">,
      country_id: "CA",
      country_name: "Canada",
      region_id: 2
    }
  ],
  [
    %HR.Region{
      __meta__: #Ecto.Schema.Metadata<:loaded, "regions">,
      region_id: 1,
      region_name: "Europe"
    },
    %HR.Country{
      __meta__: #Ecto.Schema.Metadata<:loaded, "countries">,
      country_id: "CH",
      country_name: "Switzerland",
      region_id: 1
    }
  ]
]

In the above IEx shell, you can see that only matching region_id values in both HR.Region and HR.Country are returned.

Keyword example

HR.Repo.all(from r in HR.Region, join: c in HR.Country, on: r.region_id == c.region_id, select: [r, c])
